Compact Traffic Lights

Compact Traffic Lights are an integral traffic management tool for use on roadwork sites. It is intended to be used to control localized vehicular traffic flow as a safer substitute for STOP/ SLOW (lollipop) signs. It is powered by a LiPo maintenance free battery that needs to be recharged at the end of the day. It is not intended to be left unattended on site and when set to Type-1 operating mode can only be operated via an optional Remote Control which places a safe distance between the actual Traffic Light and the operator.

Traffic Signal Compact Compact PTL

The entire unit is light weight and can be folded down and easily transported. The 200mm aspects use ultra-bright LED's for optimal viewing. If used as a set, the Compact PTLs maintain constant RF (radio frequency) communication with the each other, as required for MRTS264 Type-1 Portable Traffic Signals and TSI-SP-062,049, 050 and where relevant AS4191-2015 Portable Traffic Signals.

Normal RF operating range is up to 500 meters line-of-sight under normal conditions.

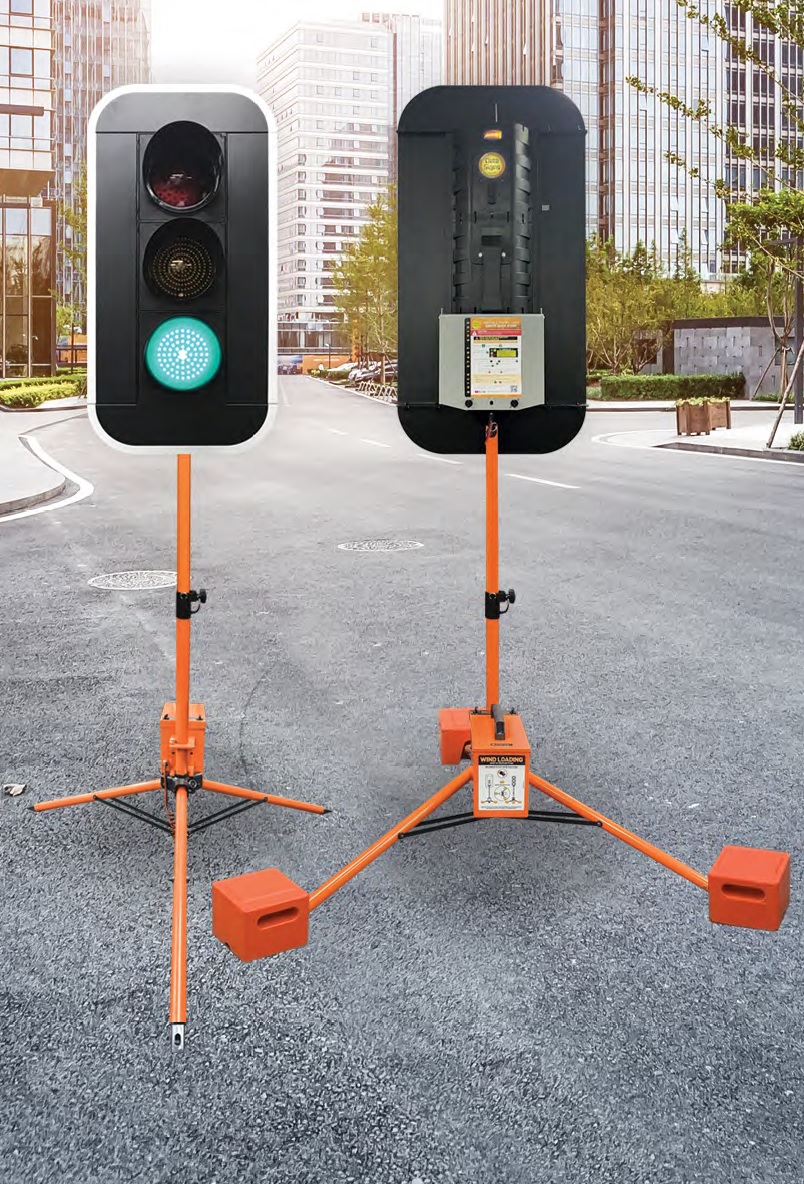

Features include lightweight foldable tripod stand that can be quickly set-up by one person.

PTL Setup

Target Board Setup

Connect using Bluetooth

Gating Mode

Shuttle Mode

Plant Crossing Mode

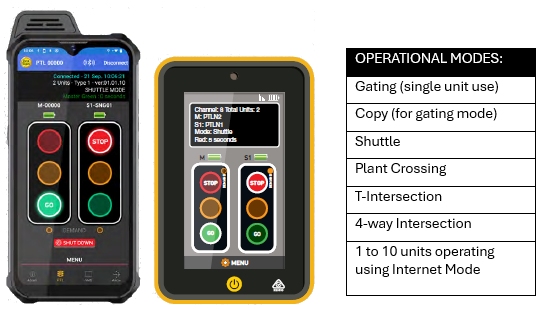

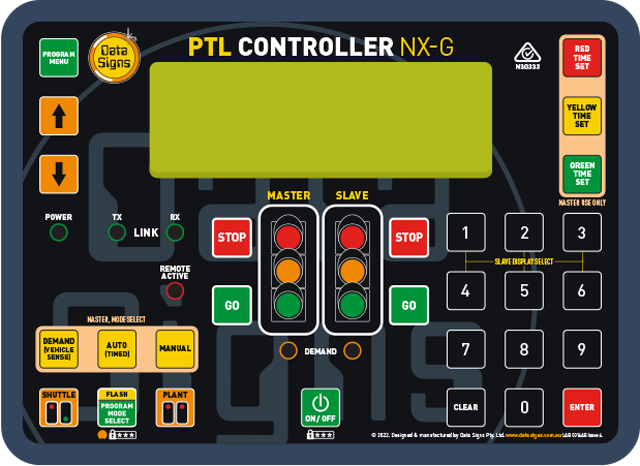

The unit can be controller using a physical PTL Remote Control or by a mobile phone by installing our PTL™ mobile app designed for  Apple and  Android phones.

When set to Type-2 operation mode; various operational control functions are available which include:

  • 2-Way Plant Crossing Control
  • 2-Way Shuttle Control
  • Gating Control
  • Auto-timed signal changes
  • 3-way intersection
  • 4-way intersection

Optional:

  • Vehicle Sensor DEMAND Mode
  • Monitoring via DS-Live Platform


Operational Modes
