Stop-n-Go Traffic Lights

Stop-n-Go Traffic Lights are an integral traffic management tool for use on roadwork sites. It is intended to be used to control localized vehicular traffic flow as a safer substitute for STOP/ SLOW (lollipop) signs. It is powered by a LiPo maintenance free battery that needs to be recharged at the end of the day. It is not intended to be left unattended on site and can only be operated via the Remote Control which places a safe distance between the actual Traffic Light and the operator.

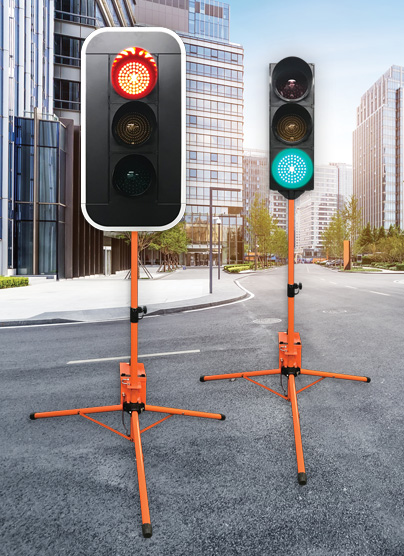

Stop-n-Go Traffic Lights Stop-n-Go PTL

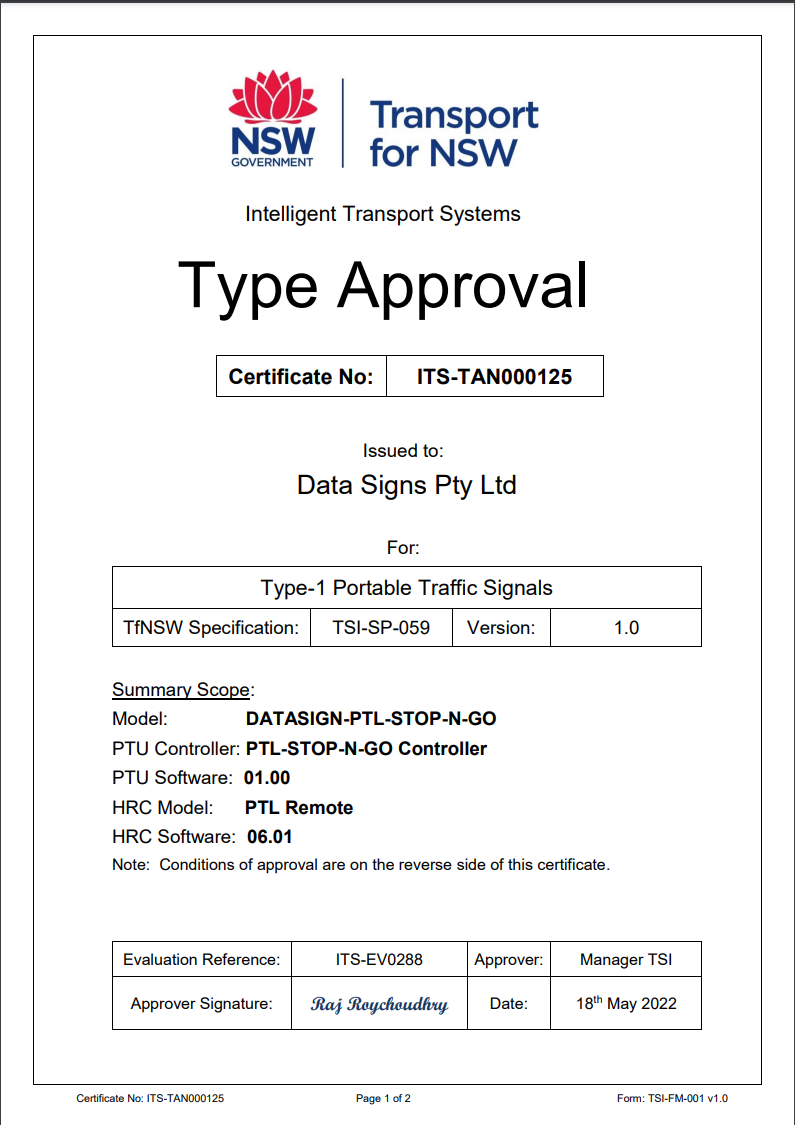

The entire unit is light weight and can be folded down and easily transported. The 200mm aspects use ultra-bright LED's for optimal viewing. If used as a set, the Stop-n-Go PTLs maintain constant RF (radio frequency) communication with the each other, as required by MRTS264 Type-1 Portable Traffic Signals and TSI-SP-062,049, 050 and where relevant AS4191-2015 Portable Traffic Signals.

Normal RF operating range is up to 800 meters line-of-sight under normal conditions.

Distance limited by max ‘all-red time’ (99 sec’s) depending on speed in road works site and subject to safe work site requirements. Line-of-sight.

Features include lightweight foldable tripod stand that can be quickly set-up by one person.

PTL Setup

Target Board Setup

Connect using Bluetooth

Gating Mode

Shuttle Mode

Plant Crossing Mode

Setting Red / Green Time

Change RF Channel

Charging a Unit

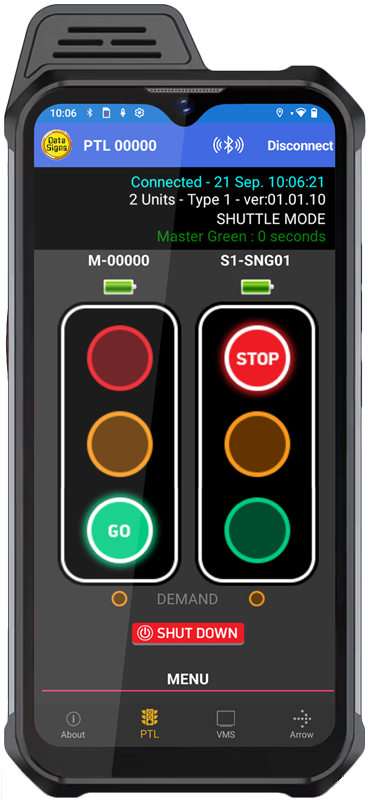

The unit can be controller using a physical PTL Remote Control or by a mobile phone by installing our PTLConnect™ mobile app designed for  Apple and  Android phones.

Various operational control functions are available which include:

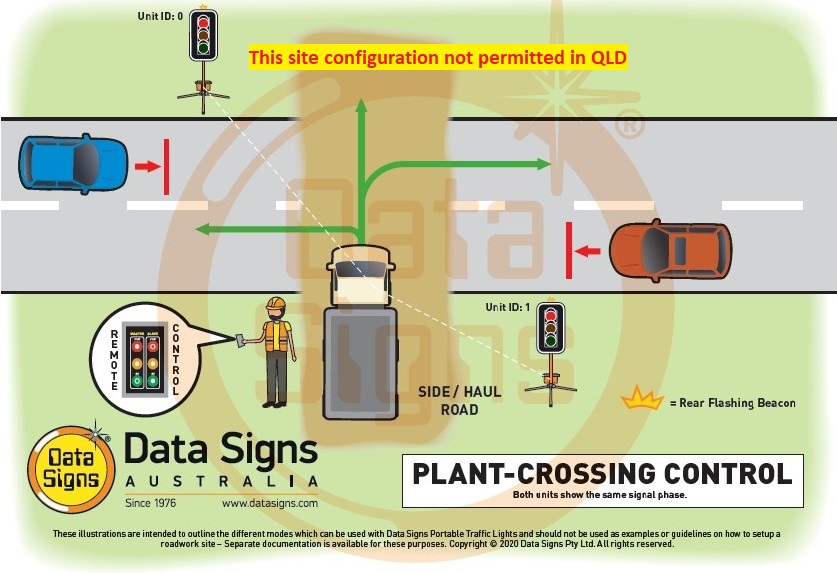

  • 2-Way Plant Crossing Control

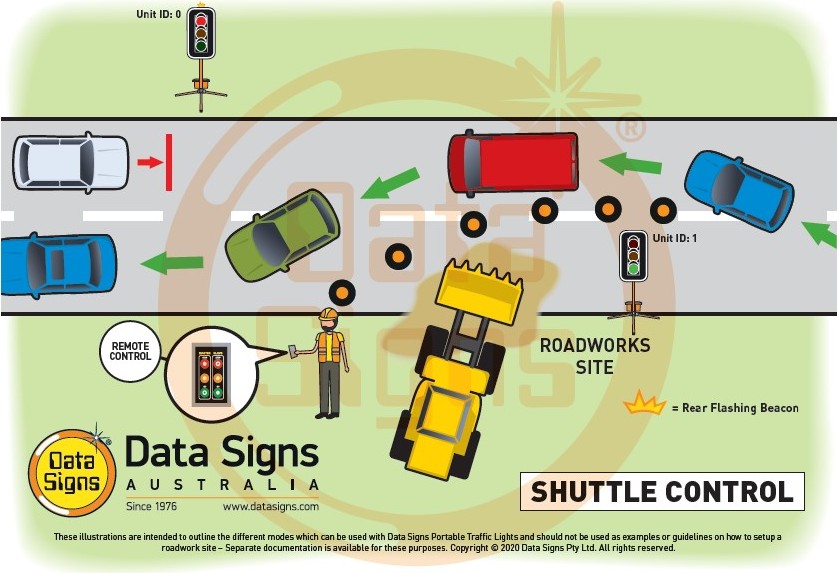

  • 2-Way Shuttle Control

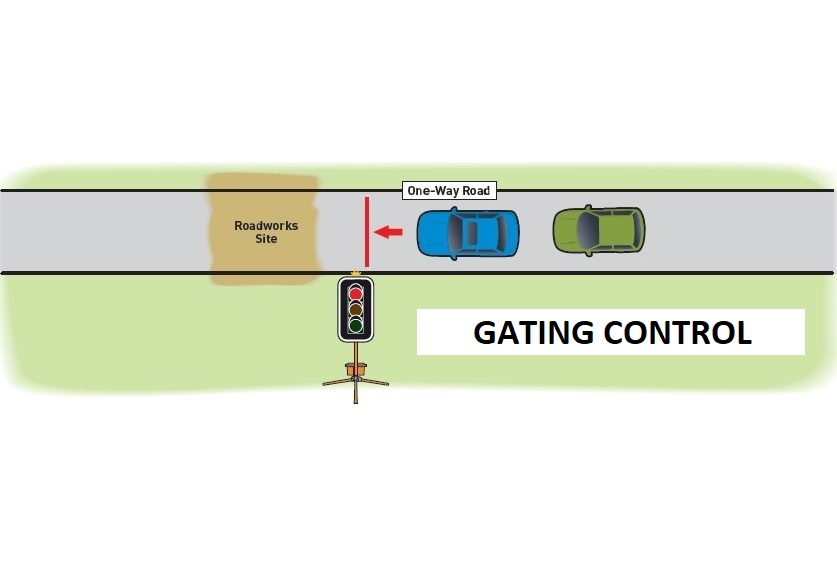

  • Gating Control

Operational Modes
